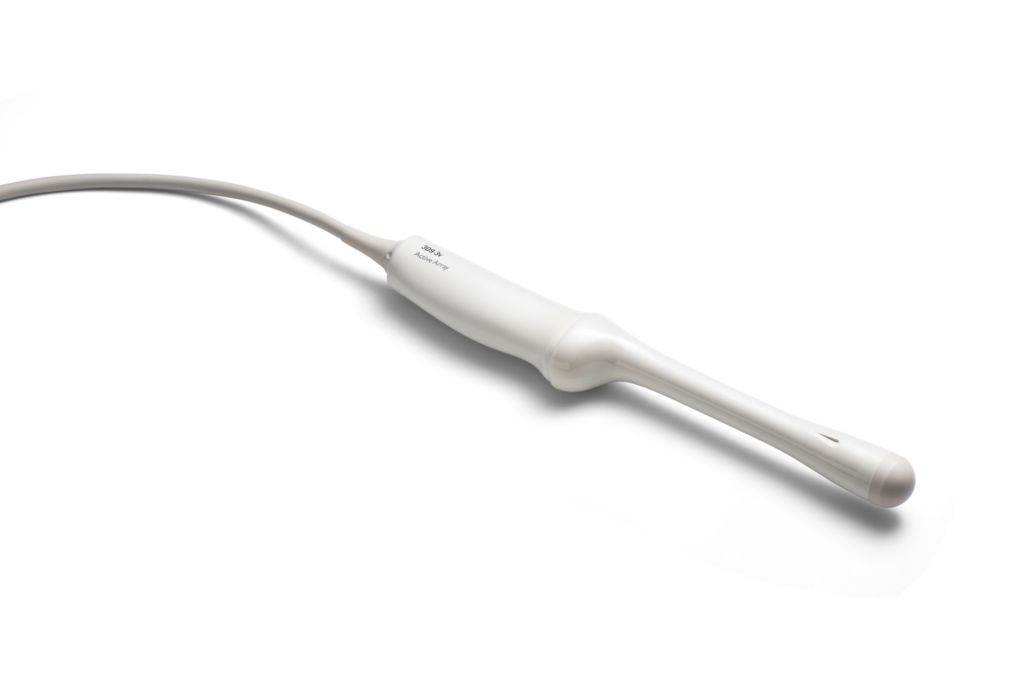

3D9-3v Transducer
Broadband curved array transducer
3D9-3v Transducer
Broadband curved array transducer
The 3D9-3v curved array transducer offers 9
to 3 MHz extended operating frequency
range and 164-degree field of view. It
supports high resolution 2D imaging, high
resolution quantitative, single sweep 3D
volume acquisition and 4D imaging for
endovaginal obstetrical and gynecological
applications.
Clinical image gallery

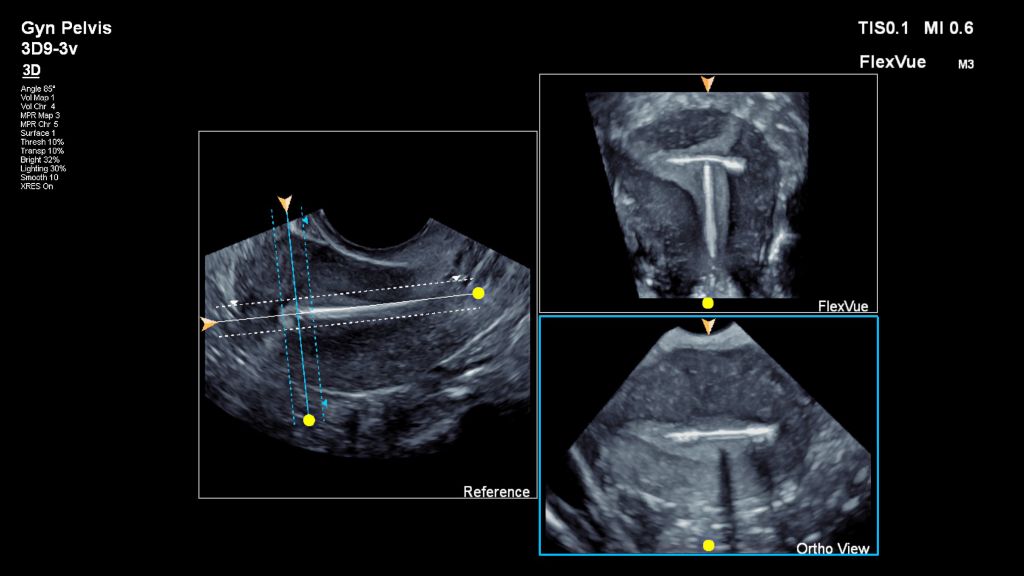

- FlexVue with Orthogonal View produces a complete projected coronal view of the uterus with an IUD

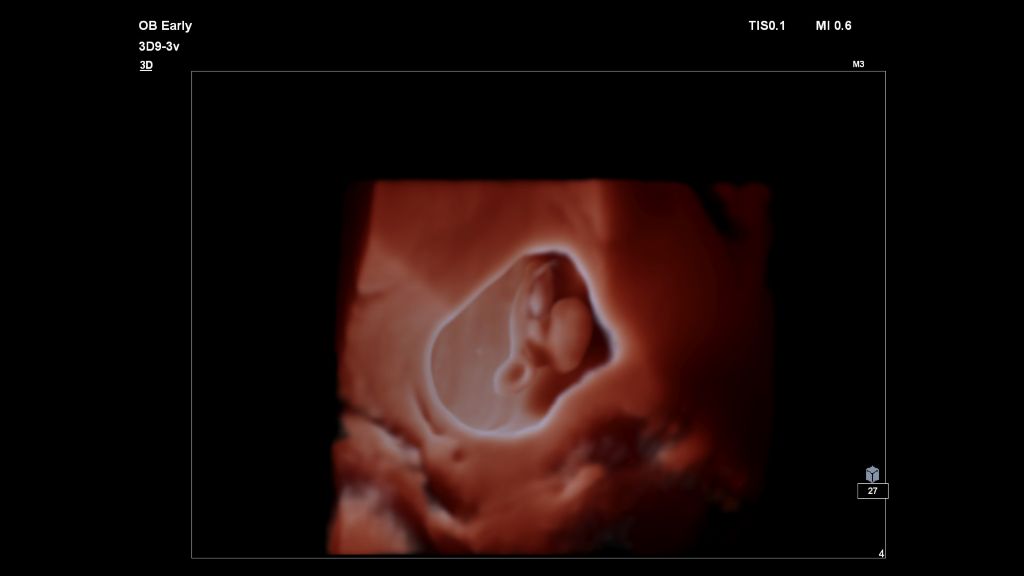

- Triplets shown using GlassVue on 3D9-3v transducer
- Triplets shown using TrueVue on 3D9-3v transducer
- Ovaries shown with Color Power Angio using 3D9-3v transducer
- Ovaries in MaxVue display using 3D9-3v transducer
Specifications
- Specifications
- Technology
- Broadband
- Number of elements
- 128
- Frequency range
- 9 - 3
- Array Type
- 3D volume
- Aperture
- 26.1
- Field of view
- 130°
- Volume of field of view
- 130° x 100°
- Applications
- Endovaginal obstetrics, gynecology, and fertility
- Biopsy capable
- Yes
- Image Fusion Navigation capable
- No
Disclaimer
Available in select countries. Please consult your Philips representative for further details.
