Vascular Ultrasound
The ultimate ultrasound solution for vascular assessment
Ultrasound is ideal for helping vascular clinicians make decisions that positively impact patient care and outcomes. However, there hasn't been a vascular ultrasound solution in decades that has elevated vascular assessment to the next level... until now.
Philips AAA Model offers increased diagnostic confidence and improved patient experience without the drawbacks of 2D ultrasound and CT angiography in the current standard of care.
With revolutionary imaging formats and complementary clinical tools, our solutions help clinicians efficiently assess and monitor vascular disease, enabling delivery of exceptional patient care.
Want to talk to a sales rep or just stay informed?
Complete the form and someone will get back to you.
68% less repetitive
button pushes with Auto Doppler**
15% time savings
on EPIQ versus IU22 for LE exams (a reduction of 1.8 minutes, on average, per exam) '
1-click acquisition
Icon-based 3D workflow, simplifying acquisition and manipulation "
**Auto Doppler Clinical Study, Dec 2011 ' Philips Internal timing study " External user study on EPIQ Elite based on 27 respondents. Study report available upon request
I personally envision the new XL14-3 as the most powerful vascular imaging tool since the invention of color Doppler imaging in the early 80’s. Every imaging application it offers provides new benefits in a way that I have never seen before.”*
Muhammad Hasan
MBBCH, RPVI, RVT, RDCS, RDMS Miami Cardiac & Vascular Institute, Baptist Health South Florida

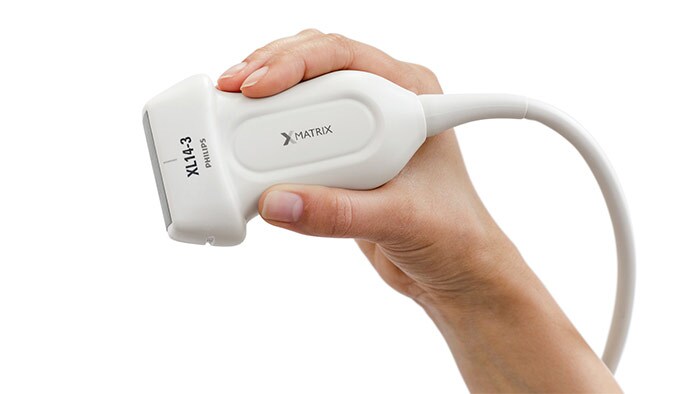

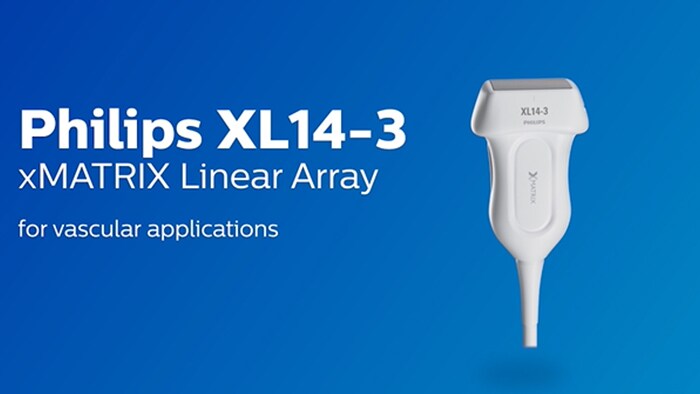

The world's first xMATRIX linear array transducer
The XL14-3 xMATRIX Linear Array transducer for vascular assessment is the biggest advance in vascular ultrasound in 20 years.
Watch the demo video to learn more.
Key Features

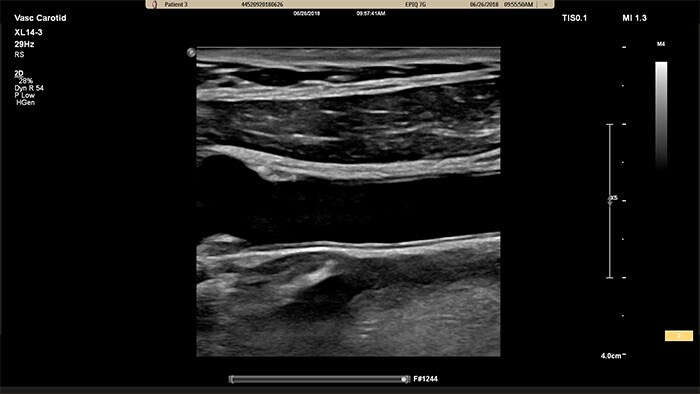

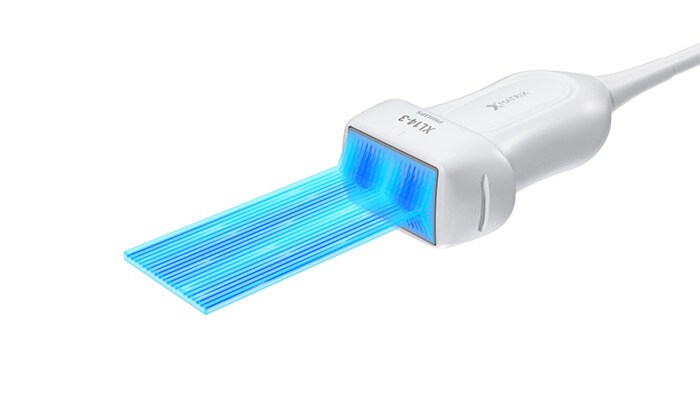

Thin Slice Imaging
The XL14-3 xMATRIX transducer incorporates an amazing 14,000 elements, all connected to a separate micro-channel. The XL14-3 transducer features multi-dimensional electronic focusing for ultra-thin slice imaging of vascular anatomy and plaque morphology. The key benefit: exceptional diagnostic confidence when assessing stenosis and vulnerable plaque.

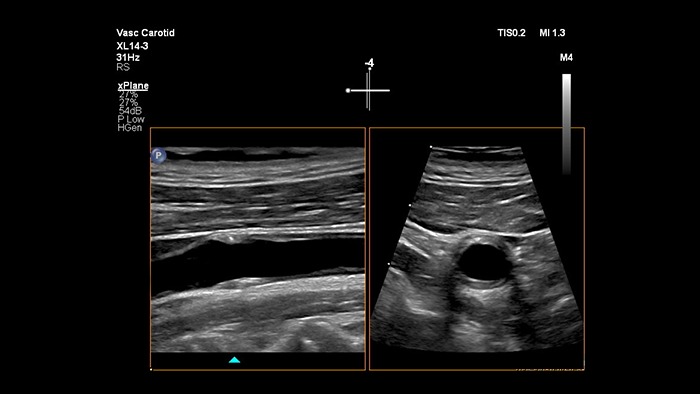

xPlane Imaging
The XL14-3 xMATRIX transducer offers xPlane imaging that goes beyond the conventional approach to vascular exams by offering real-time images in both the longitudinal and transverse planes simultaneously. The key benefit: xPlane imaging eliminates the need to rotate the transducer to acquire orthogonal views. A simple move of the trackball can provide complete anatomical evaluation – saving exam time.

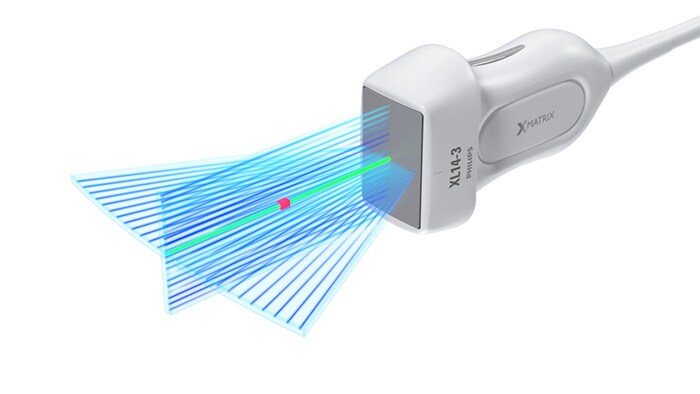

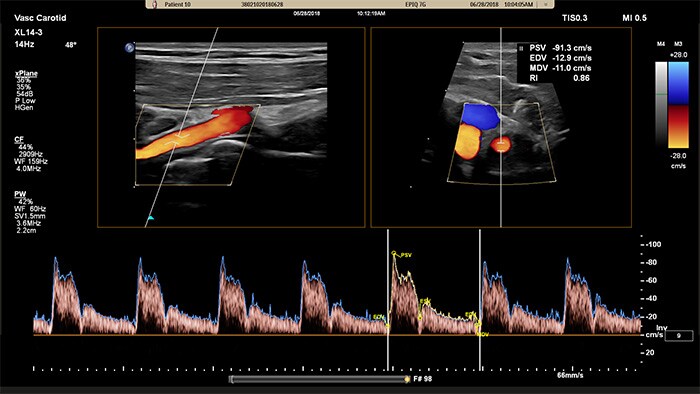

xPlane Doppler
The XL14-3 xMATRIX also offers xPlane Doppler capabilities. xPlane pulse Doppler allows precise placement of the Doppler sample volume using both longitudinal and transverse reference images. The key benefit: xPlane Doppler reduces sample volume placement errors and provides greater reproducibility and consistency when sampling significant stenosis.

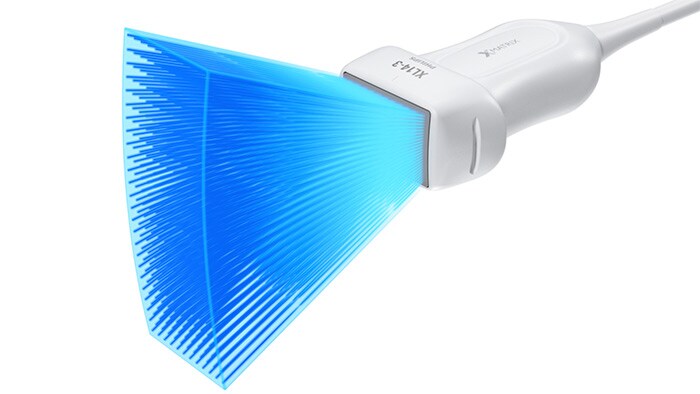

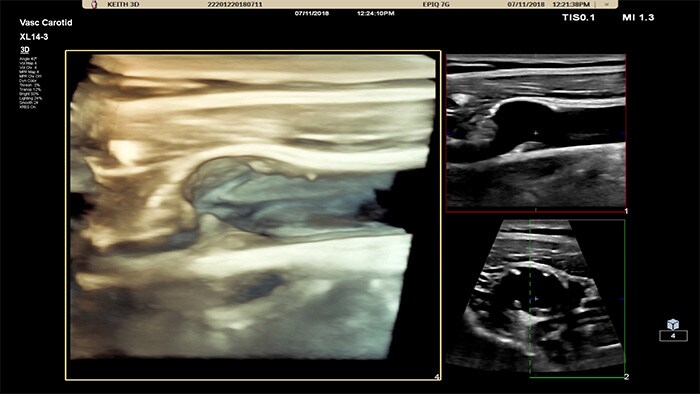

Philips XL14-3 xMATRIX linear array transducer: Easy 3D/4D visualization
The XL14-3 xMATRIX also has the ability to visualize anatomy in amazing 3D/4D with an easy-to-use ICON-driven workflow. Clinicians can see directly into a vessel to evaluate plaque spatial location and composition, as well as 3D flow data to assess stenotic or tortuous conditions.

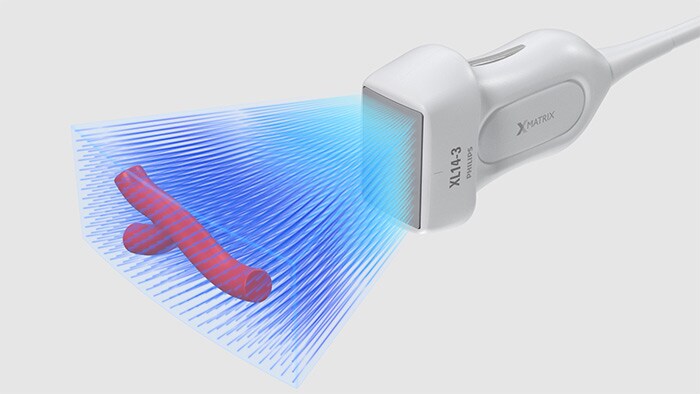

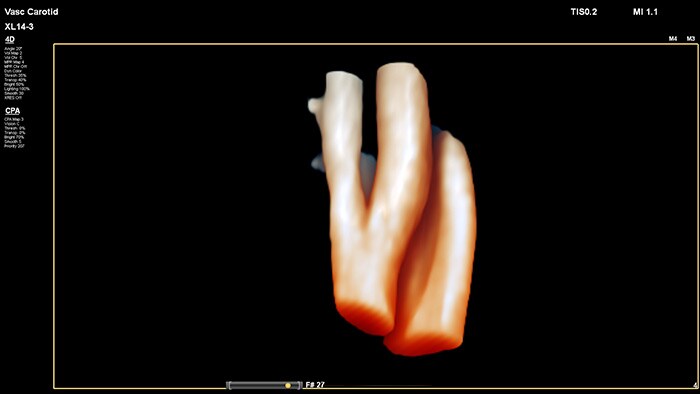

The 3D/4D user interface also offers the ability to generate a vessel cast using flow data. 3D vessel casting allows the direct visualization of flow for further analysis of stenosis or tortuous conditions. The key benefit: high-quality 4D/3D visualization of vascular anatomy provides an ideal communication tool to facilitate clinical decisions among providers and enhance consultation with patients to help them understand their condition.

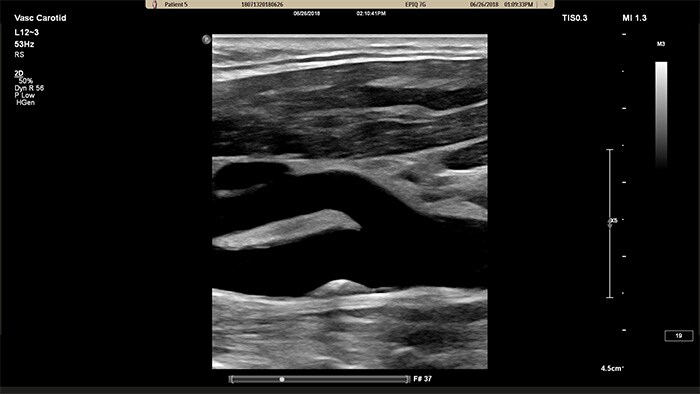

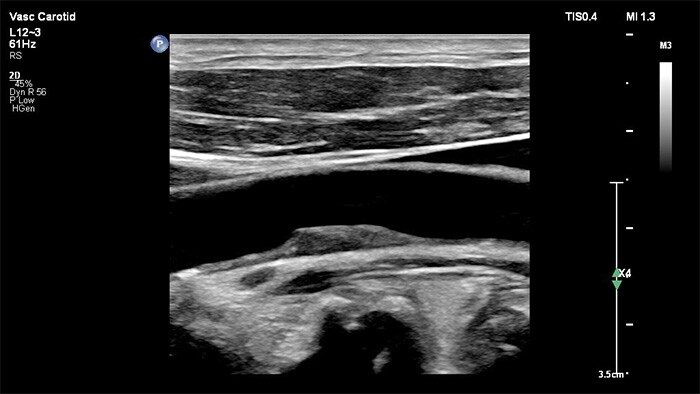

XRES Pro for high-quality image processing
Philips next-generation image processing elevates vascular imaging to new levels by providing superb delineation of vessel interfaces and enhanced plaque texture conspicuity. By reducing vessel haze and artifacts, XRES Pro elevates diagnostic confidence during vascular imaging of patients, including those that are technically challenging.

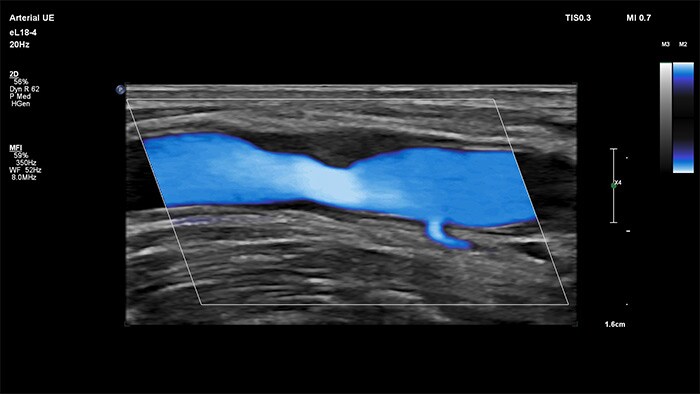

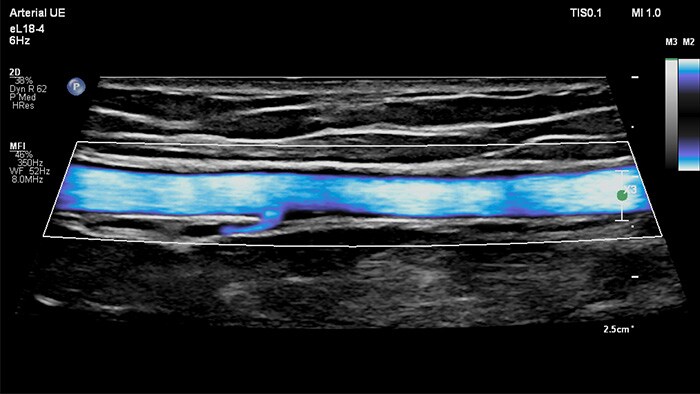

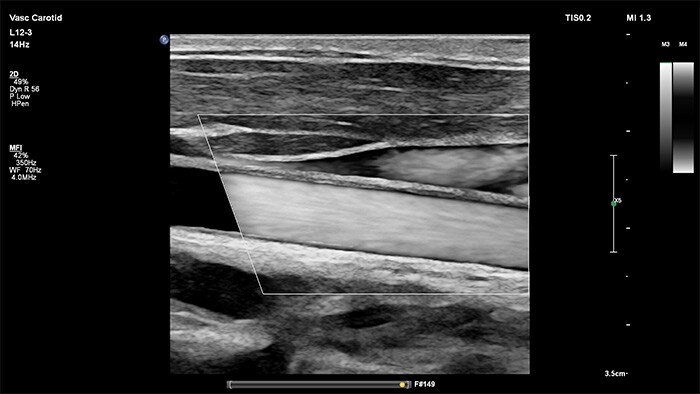

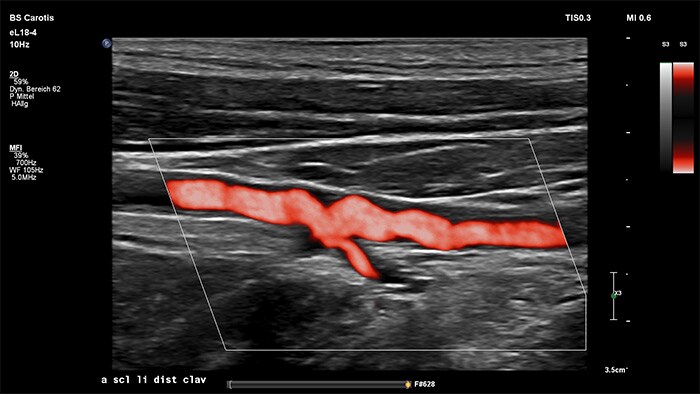

MicroFlow Imaging
Philips MicroFlow Imaging is designed to detect slow and weak blood flow anatomy in tissue with remarkable sensitivity and enhances the resolution of flow in vascular exams. With high resolution and minimal artifacts, clinicians can visualize and characterize subtle flow disturbances around stenotic plaque to make confident diagnoses.
Transducers created to image all body habitus
People come in many different shapes and sizes, with PureWave crystal technology you can improve penetration in difficult to scan body types, all while maintaining excellent detail resolution, Doppler sensitivity and contrast enhanced ultrasound (CEUS) performance.
PureWave crystal technology is the biggest breakthrough in piezoelectric transducer material in 40 years and is 85% more efficient than conventional piezoelectric materials, resulting in exceptional performance for all patient body types.
-
eL18-4
Learn more about the Philips eL18-4 ultra-broadband linear array transducer with PureWave crystal technology in the specification table below.
453561780782 -
L12-5 50 mm
Learn more about the Philips L12-5 50 mm linear array transducer in the specification table below.
989605418551 -
eL18-4 EMT
The Philips eL18-4 EMT transducer, has a built-in electromagnetic tracking (EMT) coil that allows tracking of the transducer in space used for Fusion and Navigation or for the Philips Anatomical Intelligence for Breast (AI Breast) software feature. For AI Breast the integrated EM tracking coil in conjunction with a speciality mattress and tabletop field generator is used for used for breast screening exams while preserving superb image quality for full diagnostic studies. Learn more about the eL18-4 EMT ultra-broadband linear array transducer in the specification table below.
989605431531
-
-
L12-3
Learn more about the Philips L12-3 broadband linear array transducer in the specification table below.
989605412071 -
D5cwc CW
Learn more about the Philips D5cwc CW non-imaging transducer in the specification table below.
989605412061
-
-
D2tcd PW
Learn more about the Philips D2tcd PW non-imaging transducer in the specification table below.
989605412101 -
XL14-3 xMATRIX Transducer
The XL14-3 xMATRIX Linear array transducer for vascular is the biggest advance in vascular ultrasound in 20 years.
989605409251 -
L18-5
Learn more about the Philips L18-5 broadband linear array transducer in the specification table below.
989605409581
-
-
VL13-5
Learn more about the Philips VL13-5 broadband linear volume array transducer in the specification table below.
989605409591 -
L15-7io
Learn more about the Philips L15-7io broadband compact linear array transducer in the specification table below.
989605387851
-
