EarlyVue VS30

Vital signs monitor

863380

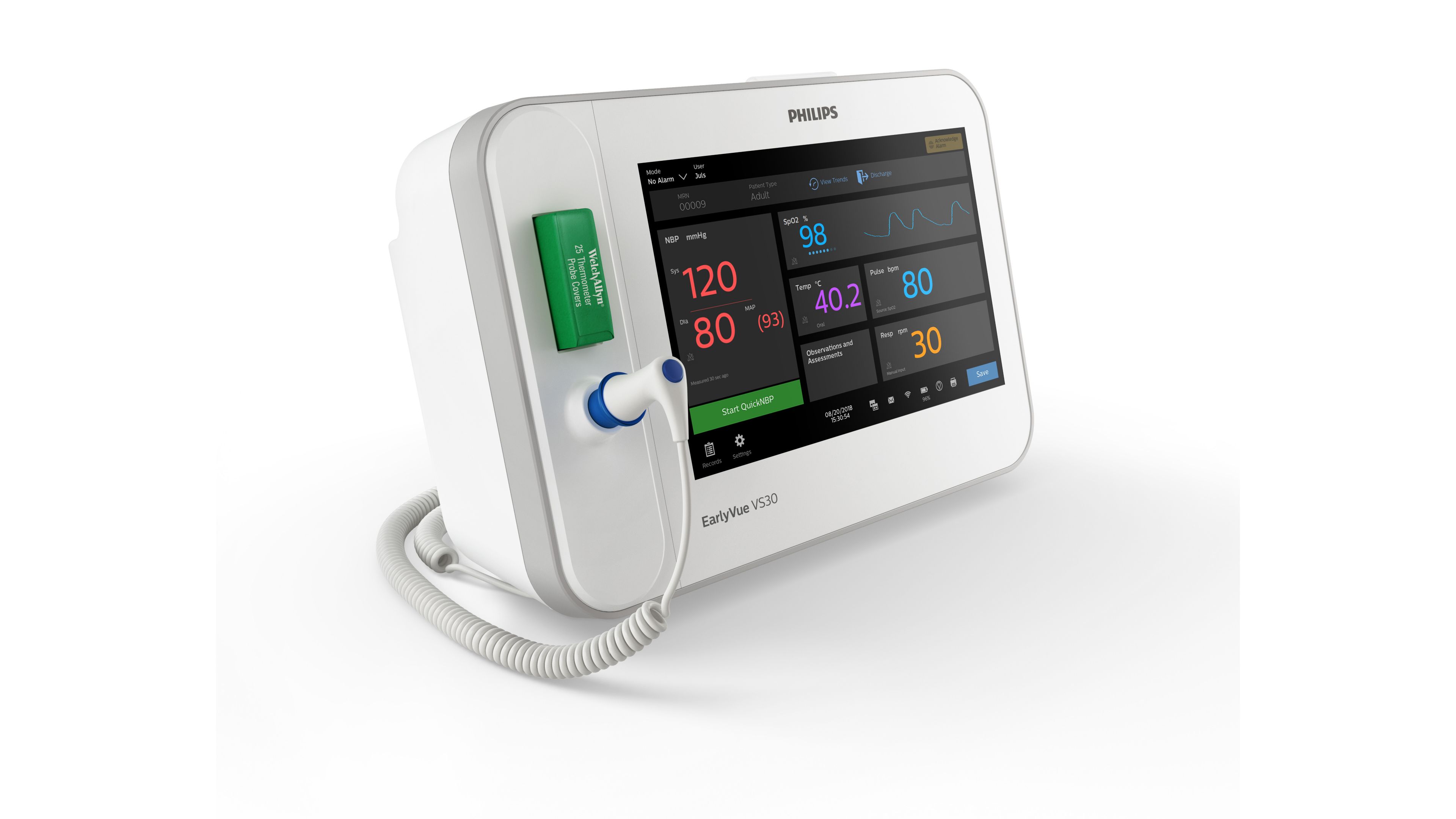

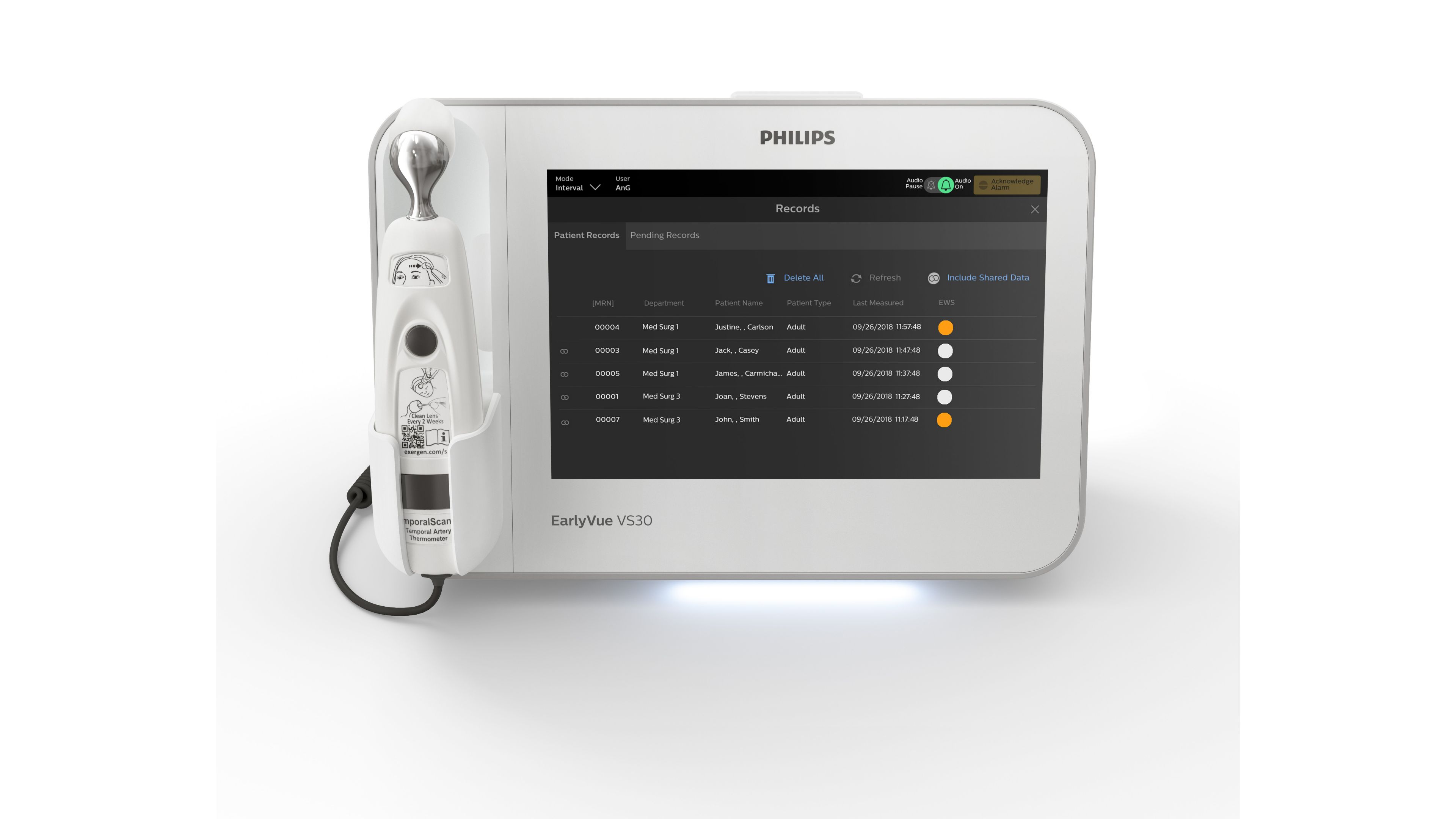

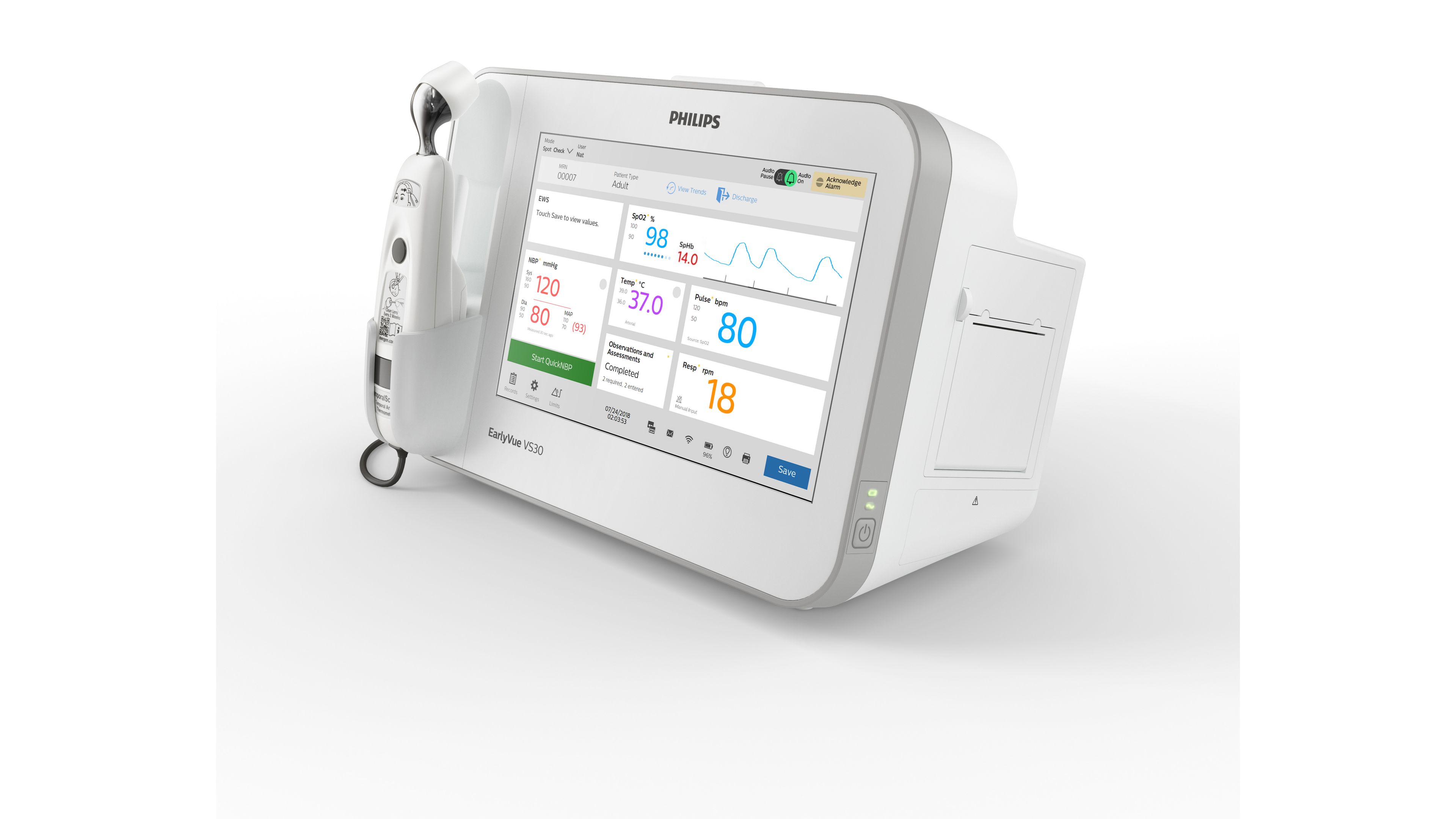

Philips EarlyVue VS30 vital signs monitor unleashes the power of automated Early Warning Scoring (EWS) to help you quickly pinpoint subtle signs of patient deterioration, and confidently deliver proactive care. Early detection, intelligent intervention.

Bring notifications to the bedside
Put the flow in workflow
Monitor vital signs and more
Protect patient data

Need help with your account or ordering? To access estore support, click here

Looking for product documentation and support? To access technical support. click here

Features

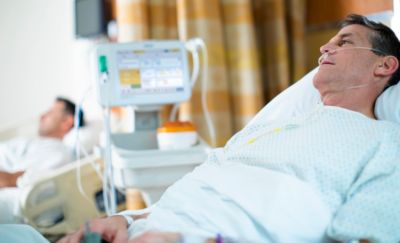

Put the flow in workflow

This vital signs monitor can be tailored to your hospital, your protocols and the way you work. Document full patient assessments with up to 35 customizable fields using QuickCapture. Automate EWS calculations to accelerate care with QuickAlerts. And simplify data flow to and from your hospital systems with the QuickCheck feature.

Automate patient data input

Auto-populate user and patient demographics with a license-free barcode scanner to reduce the potential for manual transcription errors. EarlyVue VS30 streams patient data directly to your EMR or HIS via HL-7 or IntelliBridge Enterprise.

Ease your workflow

An intuitive user interface and 10” touchscreen display help to shorten the learning curve and reduce training time – even for less experienced staff. The EarlyVue VS30 is an ideal choice for organizations that need to manage frequent turnover.

Specifications

Physical specifications
Width
33 cm (not to exceed)
Height
23 cm (not to exceed)
Depth
23 cm (not to exceed)
Weight (fully options, with battery)
5 kg or less
Battery, lithium ion, smart battery
11.1 V, 7800 mAh
Battery operating time (new, fully charged)
At least 6 hours
Internal power supply
100 to 240 VAC
Maximum output power consumption
60 W
Frequency
50/60 Hz
Display
Screen type
LCD with 5-wire resistive touchscreen
Screen size
10.1 in
Refresh frequency
60 Hz
Resolution
216.96 x 135.6 mm
Viewing angle
±85°

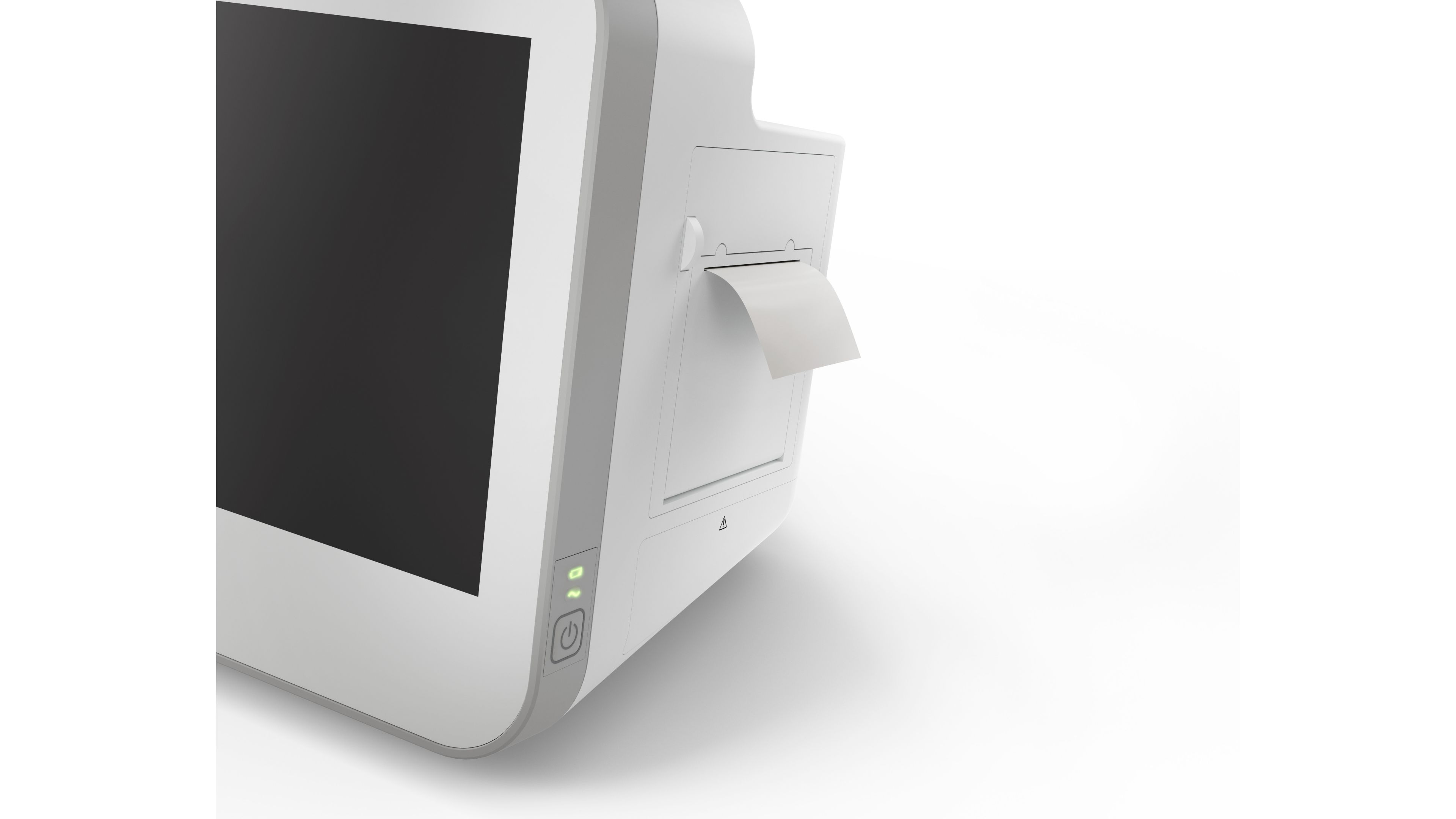

Recorder
Type
Thermal
Paper width
58 mm
User selectable speeds
6.25, 12.5, 25, 50 mm/sec
Environmental specifications
Humidity, operating and storage for monitor
10% to 90% of RH (non-condensing)
Humidity, operating and storage for monitor with recorder and paper
10% to 90% of RH
Noninvasive blood pressure measurement
Adult systolic range
30 to 270 mmHg
Adult pulse rate range
40 to 300 bpm
Pediatric systolic range
30 to 180 mmHg
Pediatric pulse rate range
40 to 300 bpm
Neonatal systolic range
30 to 130 mmHg
Neonatal pulse rate range
40 to 300 bpm
NBP interval choices
Off, 1, 2, 3, 5, 10, 15, 30, 60, 90, or 120 minutes or STAT
CO2 measurement
Measurement range
0-150 mmHg

Disclaimer

Product may not be available in all geographies, please check with your Philips representative for complete portfolio availability.
