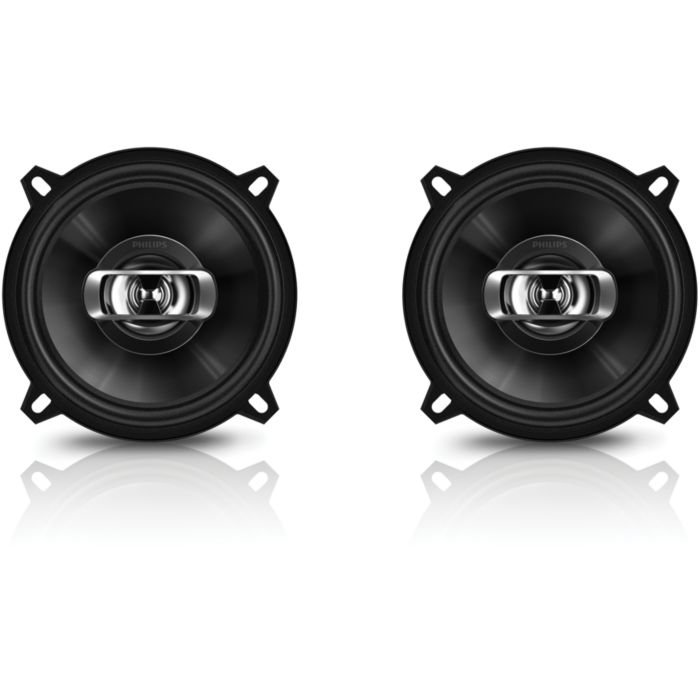

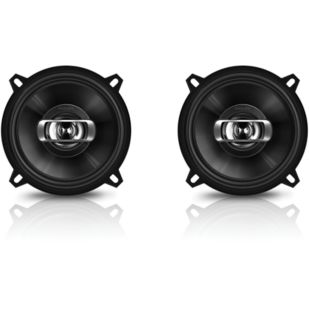

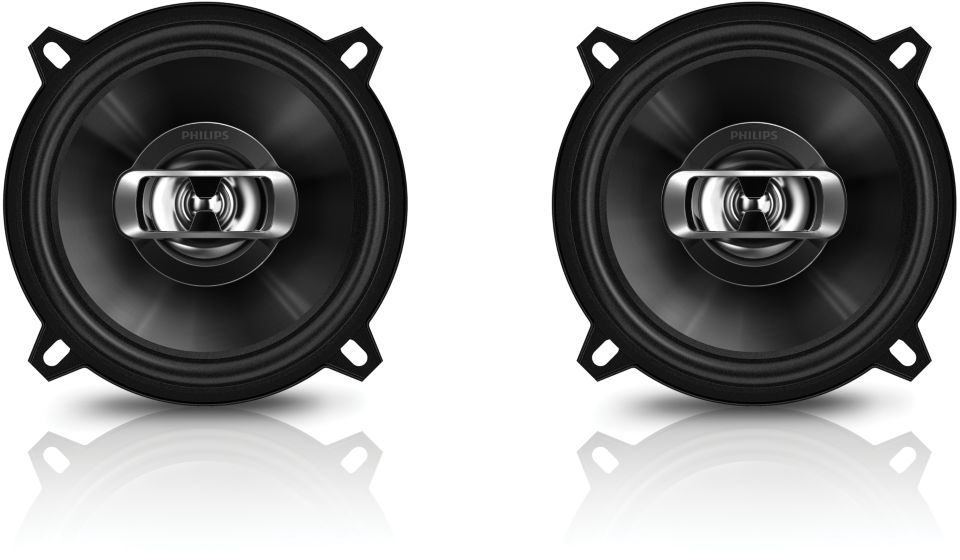

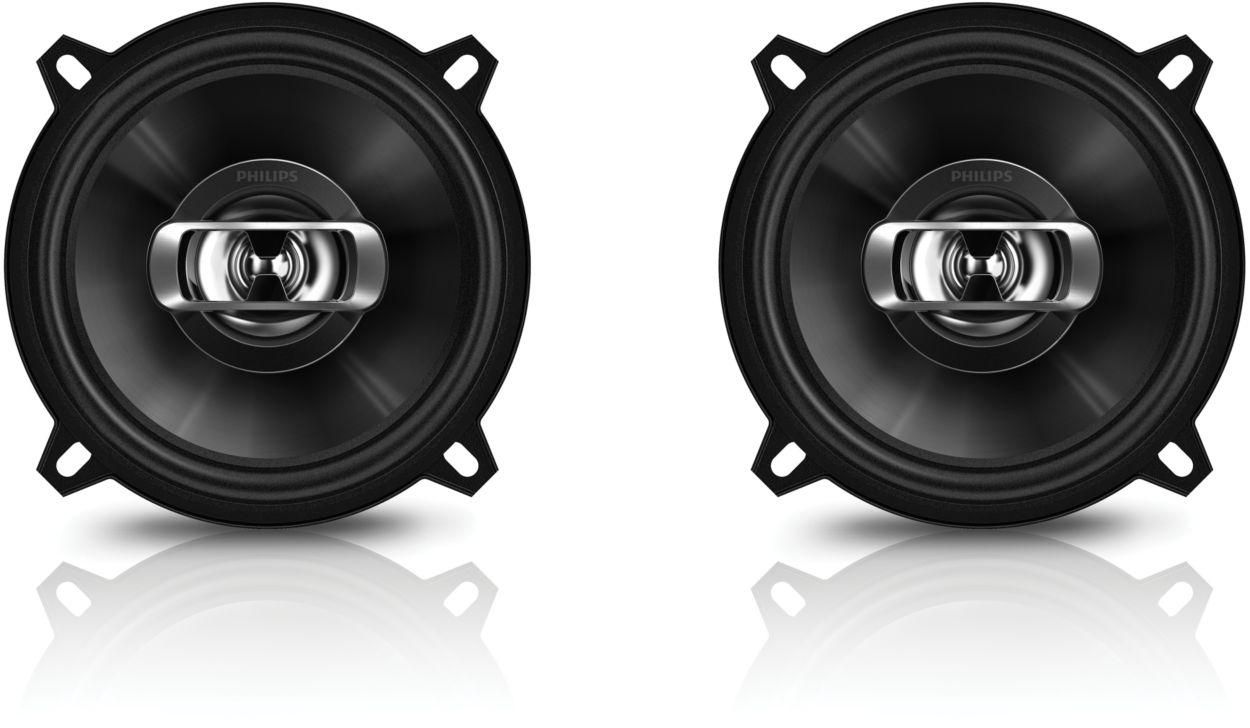

    Car entertainment system

    CSQ505/00

    Your mobile music theater

    Feel your music with the Philips Car stereo speakers CSQ505. These 13cm 2-way speakers have peak power at 140W, and feature a light polypropylene cone with a soft PEI dome tweeter so you can enjoy vivid music details in clear sound.

    See all benefits

    Unfortunately this product is no longer available

    Similar products

    See all Speakers

    Make it a bundle and save Make it a bundle and get 1 item for free

    All your needs covered in one purchase

    Bundle price

    Skip this

    Choose one of the following: Choose one of the following products:

    Add accessories

    This product
    Car entertainment system
    - {discount-value}

    Car entertainment system

    Total

    recurring payment

    Your mobile music theater

    with 2-way stereo for vivid sound

    • 12.7 cm (5")
    • 2-way
    • 140W Peak
    Light polypropylene cone for clear sound delivery

    Light polypropylene cone for clear sound delivery

    Inside the speaker, a diaphragm sits on top of a voice coil to produce a signal waveform once an input signal is received. It transforms the signal wave into a sound wave. Polypropylene is one of the lightest plastics ever invented and is great material for speaker diaphragms due to its weight, high strength, stiffness and tolerance for high temperatures. These polypropylene cones deliver high quality music by reacting to even the smallest sound signal to produce clear, vivid sound.

    Sensitive cloth surround for maximum sound details

    Sensitive cloth surround for maximum sound details

    A highly sensitive cloth connects the woofer diaphragm to the speaker frame to form a surround suspension system. When a sound signal reaches the cone inside the woofer, the cloth surround assembly brings the cone back into position to be ready to receive another sound signal. By doing so, the woofer can capture every signal with a minimum of distortion, giving you clear, smooth sound no matter how loud or how quiet the music is played.

    Soft PEI dome tweeter for warm and textured tones

    Soft PEI dome tweeter for warm and textured tones

    PEI (Polyetherimide) is ideal material for tweeter domes due to its light weight, high tensile strength, high stability and tolerance for high temperatures. Inside the tweeter, the small diaphragm (the dome opening) produces high frequency tones. These PEI domes can capture even the highest musical notes to make your music textured with warm, full-range treble. The dome shape also spreads the sound around so that you can hear the high notes from every seat in the car.

    Strong ferrite magnet for high power performance

    Strong ferrite magnet for high power performance

    Ferrite is a lightweight but strong material with a permanent and coherent magnetic field. It is the key speaker component that induces the movement of the voice coil and the diaphragm. When an input signal is received, the voice coil acts as an electromagnet that causes the woofer and tweeter diaphragm to either attract or repel. The ferrite magnet produces an even magnetic field for smooth diaphragm movement, ensuring sound output with lower distortion. Using such a stable and highly coercive magnet like ferrite, the voice coil can produce loud sounds while keeping the tone smooth.

    Endurance and performance stability in extreme conditions

    Endurance and performance stability in extreme conditions.

    Fits perfectly in all 13cm speaker openings

    Fits perfectly in all 13cm speaker openings.

    Simple wires plug-in for designated speaker terminals

    Simple wires plug-in for designated speaker terminals.

    Sturdy polypropylene cone for all-weather performance

    Polypropylene is great material for speaker cone diaphragms due to its all-weather performance. When the weather is wet, the weight of the cone can increase; reducing its sensitivity. When the weather is hot, the cone (or only part of it) can expand and become larger. In both cases, the sound can become distorted. No matter what the weather, the sturdy polypropylene cones are not affected by these issues and they produce a clear, vivid sound every time.

    25W RMS power handling

    25W RMS power handling

    Technical Specifications

    • Sound

      Frequency response
      35-26k  Hz
      Output power (RMS)
      25W
      Impedance
      4 Ohms
      Sensitivity
      87B
      Peak Music Power
      140W
    • Loudspeakers

      Number of ways
      2-way
      Number of Loudspeakers
      2
      Speaker size
      13cm (5.25")
      Speaker type
      Coaxial speaker
    • Accessories

      Cables
      Speaker wires
      Quick start guide
      English, Spanish, Portuguese, Russian
    • Dimensions

      Product depth
      159  mm
      Mounting depth
      48 mm
      Tweeter protrusion
      2 mm
      Product width
      159  mm
      Product height
      67  mm
    • Woofer

      Magnet
      Ferrite
      Surround
      Cloth
      Voice coil
      Single
      Diaphragm
      Cone
      Diaphragm material
      Polypropylene
      Magnet mass
      5.4 Oz
      Voice coil material
      Copper
      Damper
      Conex
    • Tweeter

      Magnet
      Neodynium
      Diaphragm
      Dome
      Diaphragm material
      PEI
      Size
      38mm (1-1/2" )
