Other items in the box
- Power cord
- Remote Control
- RF antenna cable
- User Manual
- -{discount-value}

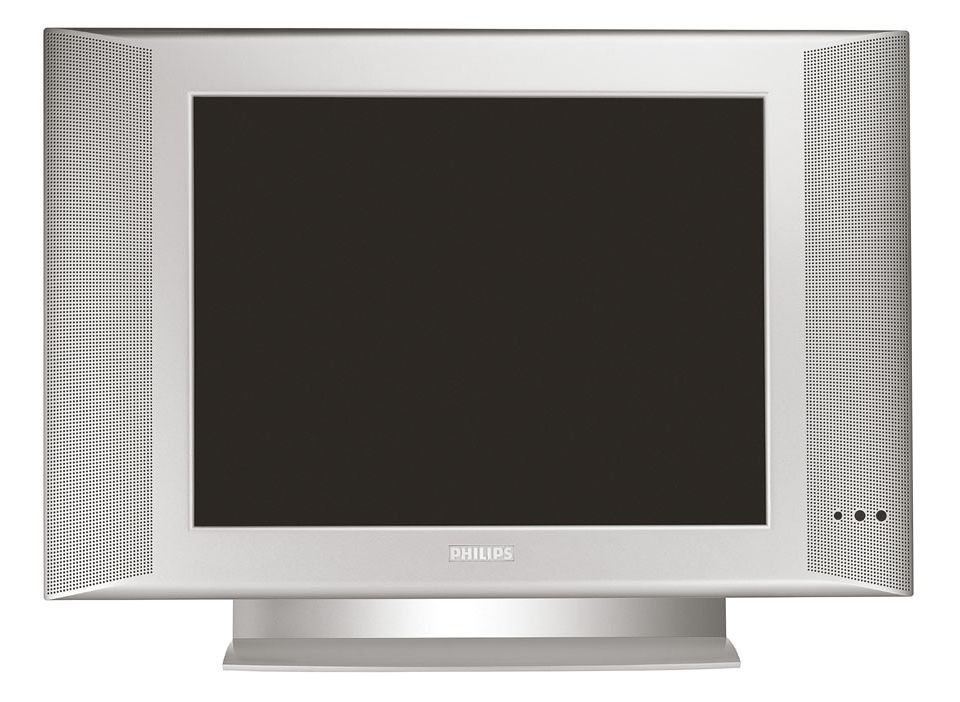

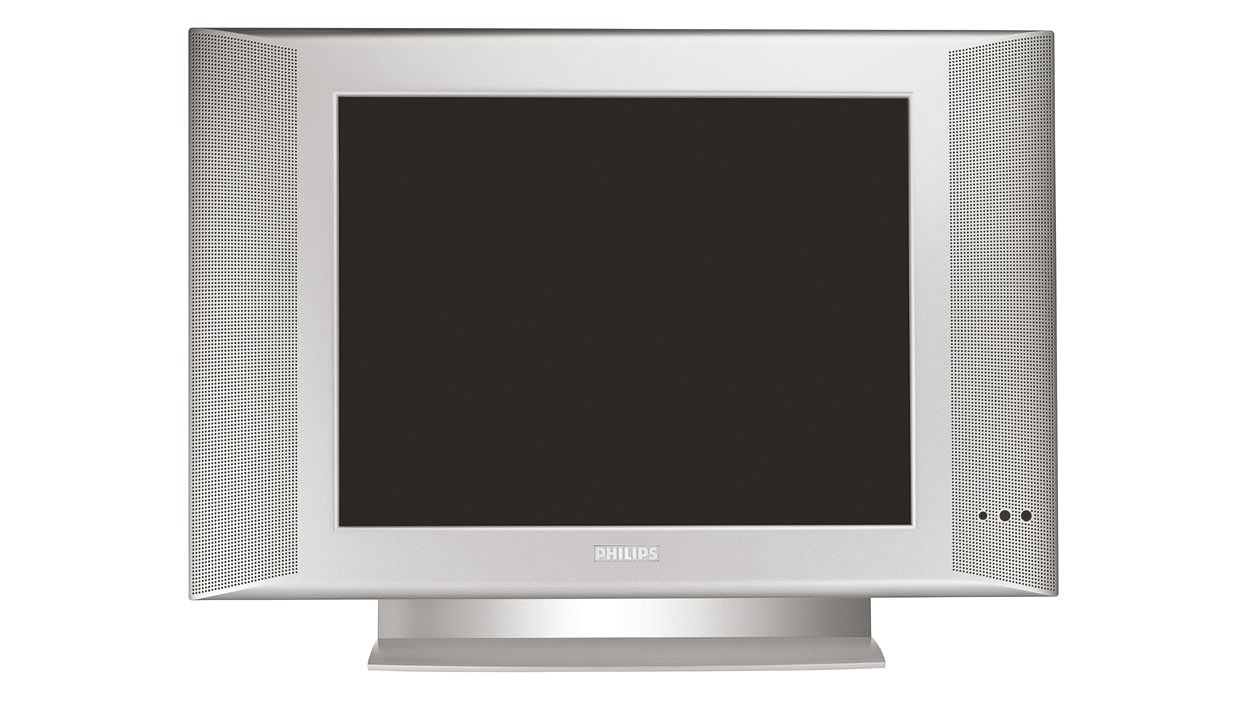

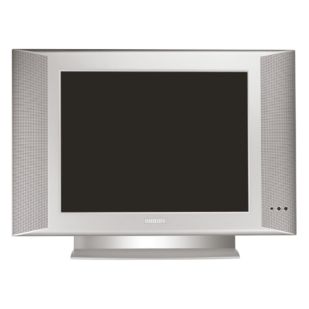

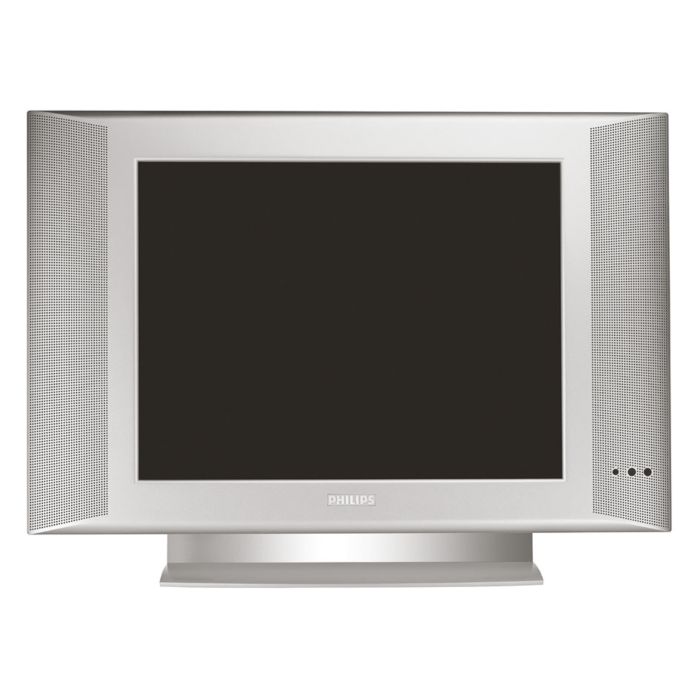

professional flat TV
20HF8432/98
System Prepared Flat TV
Stylish compact design. Equiped with advanced hotel mode and compatible with the future proof, optional, Smartcard Xpress expansion unit allowing third party interactive solutions.
See all benefitsUnfortunately this product is no longer available
This product qualifies for VAT relief
If you're eligible for VAT relief on medical devices, you can claim it on this product. The VAT amount will be deducted from the price shown above. Look for full details in your shopping basket.
Similar products
See all UnmappedMake it a bundle and save Make it a bundle and get 1 item for free
Bundle price
Choose one of the following: Choose one of the following products:
Add accessories
This product
- {discount-value}
professional flat TV
Total
recurring payment
Wireless SmartLoader for fast cloning
Provides the ability to copy easy and wireless all programmming settings from one TV set into other TV sets in less then a minute. The feature ensures uniformity between TV sets and significantly reduces installation time and costs.
Welcome message on screen display
A welcome greeting is displayed each time the TV set is switched on.
Volume limitation
This feature predefines the volume range with which the TV set is allowed to operate, preventing excessive volume adjustments and avoiding disturbance of next door guests.
Front Controls Locking
Prevents unauthorised access to TV functions
Switch On Channel Programming
Perfect for in-house advertising or information channels as it allows to show a predefined channel when the TV is turned on.
Security Menu Access
Provides conditional access to installation and configuration settings via a special code or master remote control
Built-in FM radio
The integrated FM radio offers guests additional comfort without the extra investment in radio receivers.
SmartCard Xpress Box compatible for interactive systems
The optional SmartCard Xpress Box can be mounted at the rear side of the TV set and allows third party decoders and application cards to interface with the TV adding new functionality to the TV. The TV can also be connected to external decoders and set-top boxes of all major interactive system providers, through the Serial Xpress Control Interface (supporting UART and RS232 protocols) and the SmartPlug Control interface.
Additional integrated power supply
The additional integrated power supply avoids the need for a separate power supply for an interactive system. In case of stand-alone use, the additional power supply can be switched off to save energy.
Serial Xpress™ Control interface
The Serial Xpress™ Control interface is compatible with all major premium entertainment services. The protocols enables the TV connection with external decoders, set-top boxes and PC based solutions. Support UART and RS232 protocols.
Future proof by software upgradability
The upgradable software architecture ensures that the TV is future proof and compatible with new technologies and developments, securing your investment.
Crystal Clear III for natural images with enhanced quality
Crystal Clear III combines a whole range of enhancements to provide a better picture. They include a 2D Comb filter, Dynamic contrast, Blue stretch and Green enhancement so that you always get the most natural looking colors.
Enhanced-definition LCD VGA display, 640 x 480p
This VGA display with state-of-the-art LCD screen technology has an enhanced resolution of 640 x 480p.
2D Combfilter sharpens images for finer detail
The 2D comb filter separates chrominance (color) from luminance (brightness) information in the video signal for independent processing to improve picture resolution and minimize distortion.
Technical Specifications
-
Picture/Display
- Aspect ratio
- 4:3
- Diagonal screen size (inch)
- 20 inch
- Diagonal screen size (metric)
- 51 cm
- Panel resolution
- 640 x 480p
- Brightness
- 450 cd/m²
- Picture enhancement
-
- Crystal Clear III
- Progressive scan
- Comb Filter Digital
- Active Control
- Digital Noise Reduction
- Dynamic Contrast
- Sharpness Adjustment
-
- Contrast ratio (typical)
- 350:1
- Display screen type
- LCD VGA Active Matrix TFT
- Response time (typical)
- 25 ms
- Viewing angle (horizontal)
- 176 degree
- Viewing angle (vertical)
- 176 degree
- Screen enhancement
- Anti-Reflection coated screen
-
Tuner/Reception/Transmission
- Aerial Input
- 75 ohm coaxial (IEC75)
- Tuner bands
-
- Hyperband
- S-Channel
- UHF
- VHF
- FM
-
- TV system
-
- NTSC
- PAL
- PAL B/G
- PAL D/K
- PAL I
- SECAM
- SECAM B/G
- SECAM D/K
- SECAM L/L'
-
- Video Playback
-
- NTSC
- PAL
- SECAM
-
- Tuner Display
- PLL
-
Convenience
- Child Protection
- Child Lock
- Ease of Installation
-
- Automatic Channel Install(ACI)
- Automatic Tuning System (ATS)
- Autostore
- Fine Tuning
- PLL Digital Tuning
-
- Ease of Use
-
- Menu Control
- On Screen Display
- Smart Picture
- Smart Sound
- Top Controls
-
- Clock
- Sleep Timer
- Remote Control
- TV
- Remote control type
- RC2887
- Teletext
- 10 page Smart Text
- VESA Mount
- 100 x 100 mm
- Remote control
- Zappa
-
Sound
- Output power (RMS)
- 2 x 5W
- Sound System
-
- Stereo
- Virtual Dolby Surround
-
- Music Power
- 20 W
-
Connectivity
- AV 1
- Audio L/R in
- Connectivity Enhancements
-
- RJ12 connector
- RJ45 connector
-
- Other connections
-
- A/V Audio L/R in (value)
- Antenna IEC75
- Component Video (YPbPr) input
- Composite video (CVBS) input
- FM Antenna
-
-
Power
- Mains power
- AC 90V - 240V 50/60 Hz
- Ambient temperature
- 5 °C to 40 °C
-
Accessories
- Included accessories
-
- Power cord
- Remote Control
- RF antenna cable
- User Manual
-
-
Dimensions
- Product weight
- 8.8 kg
