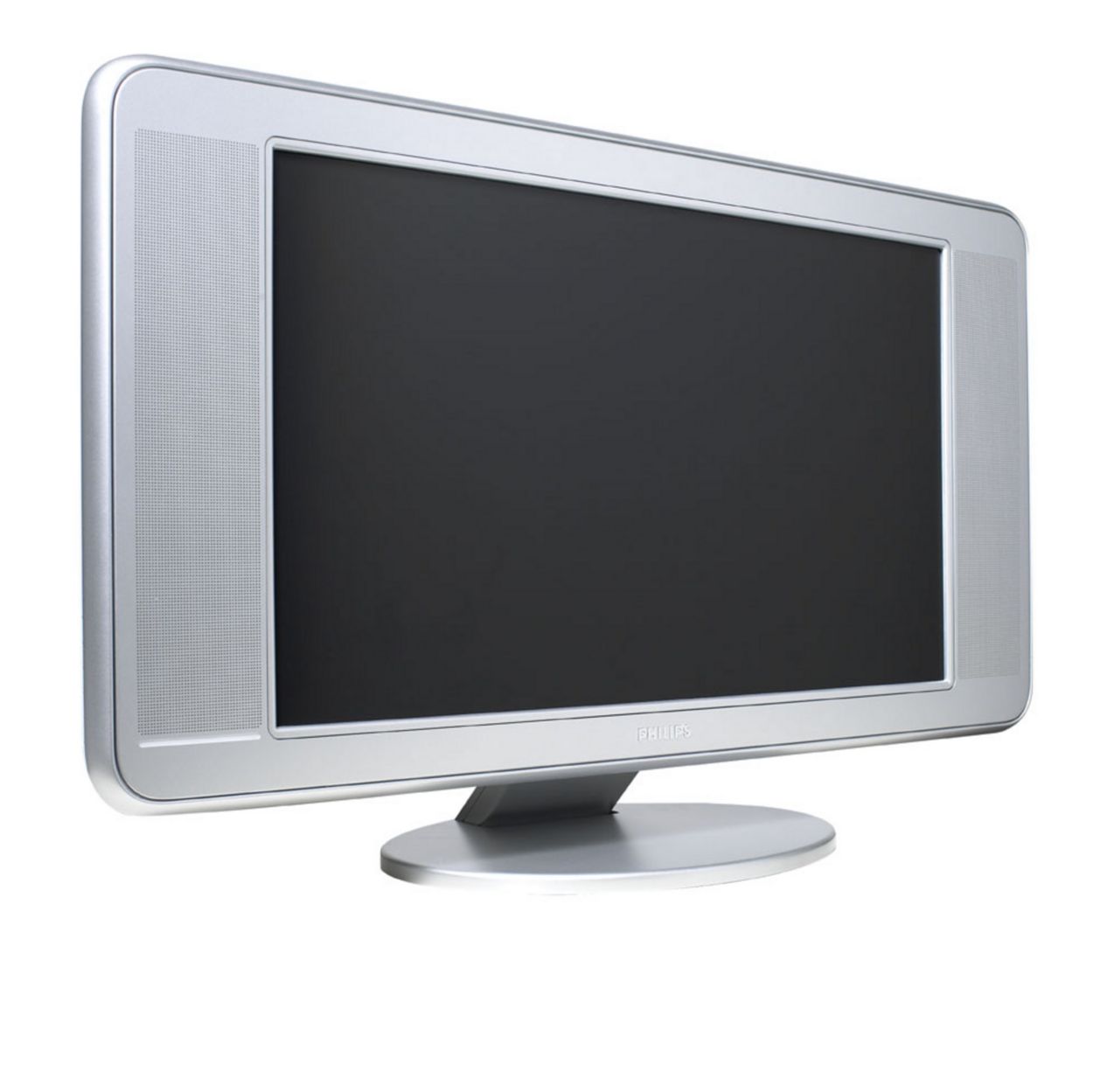

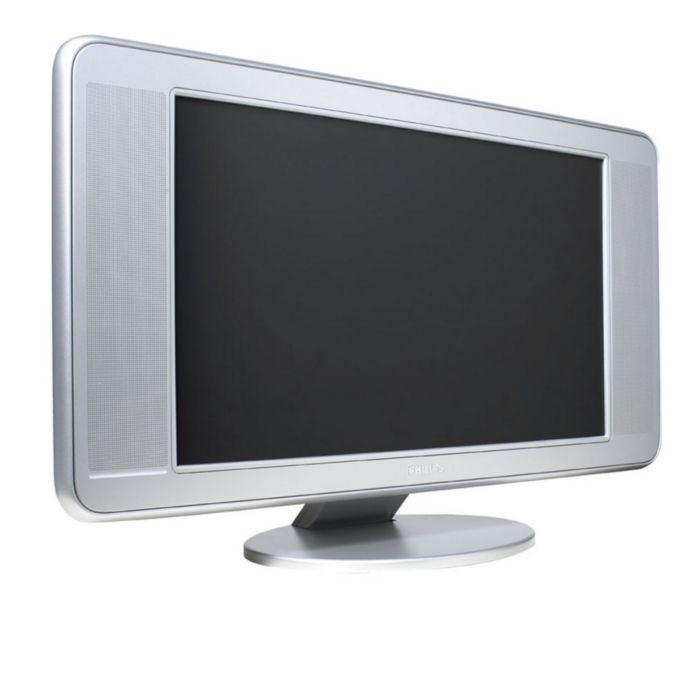

professional flat TV
23HF9442/98
System Prepared Flat TV
This LCD TV offers a razor sharp image with vivid colors and a large viewing angle. Combined with the optional SmartCard XPress unit it is fully prepared for interactive services and in-room entertainment.
See all benefitsUnfortunately this product is no longer available
This product qualifies for VAT relief
If you're eligible for VAT relief on medical devices, you can claim it on this product. The VAT amount will be deducted from the price shown above. Look for full details in your shopping basket.
Similar products
See all UnmappedMake it a bundle and save Make it a bundle and get 1 item for free
Bundle price
Choose one of the following: Choose one of the following products:
Add accessories
This product
- {discount-value}
professional flat TV
Total
recurring payment
Wireless SmartLoader for fast cloning
Provides the ability to copy easy and wireless all programmming settings from one TV set into other TV sets in less then a minute. The feature ensures uniformity between TV sets and significantly reduces installation time and costs.
Welcome message on screen display
A welcome greeting is displayed each time the TV set is switched on.
Volume limitation
This feature predefines the volume range with which the TV set is allowed to operate, preventing excessive volume adjustments and avoiding disturbance of next door guests.
Front Controls Locking
Prevents unauthorised access to TV functions
Switch On Channel Programming
Perfect for in-house advertising or information channels as it allows to show a predefined channel when the TV is turned on.
Security Menu Access
Provides conditional access to installation and configuration settings via a special code or master remote control
Built-in FM radio
The integrated FM radio offers guests additional comfort without the extra investment in radio receivers.
External loudspeaker connector
Amplified audio connector for easy installation of external speakers (like for bathrooms), eliminating the need for investments in external equipment
SmartCard Xpress Box compatible for interactive systems
The optional SmartCard Xpress Box can be mounted at the rear side of the TV set and allows third party decoders and application cards to interface with the TV adding new functionality to the TV. The TV can also be connected to external decoders and set-top boxes of all major interactive system providers, through the Serial Xpress Control Interface (supporting UART and RS232 protocols) and the SmartPlug Control interface.
Additional integrated power supply
The additional integrated power supply avoids the need for a separate power supply for an interactive system. In case of stand-alone use, the additional power supply can be switched off to save energy.
Serial Xpress™ Control interface
The Serial Xpress™ Control interface is compatible with all major premium entertainment services. The protocols enables the TV connection with external decoders, set-top boxes and PC based solutions. Support UART and RS232 protocols.
Future proof by software upgradability
The upgradable software architecture ensures that the TV is future proof and compatible with new technologies and developments, securing your investment.
Digital Crystal Clear provides vivid cinema-like images
Digital Crystal Clear is a package of picture innovations that digitally adjusts and optimizes picture quality to optimal contrast, color and sharpness levels. It's like watching vivid cinema-like images.
High-definition LCD WXGA display, 1280 x 768p
This WXGA display with state-of-the-art LCD screen technology gives you HD resolution of 1280 x 768p pixels. It produces brilliant flicker-free progressive scan pictures with optimum brightness and superb colors. This vibrant and sharp image will provide you with an enhanced viewing experience.
Active Control optimizes picture quality whatever the source
Active Control ensure that noise and sharpness improvements are continuously made at a rate of 60 times per second. By continually adjusting picture setting over 3,000 times per minute, Active Control Plus ensures that the viewing experience is optimized.
Technical Specifications
-
Picture/Display
- Aspect ratio
- Widescreen
- Diagonal screen size (inch)
- 23 inch
- Diagonal screen size (metric)
- 58 cm
- Panel resolution
- 1280 x 768p
- Brightness
- 450 cd/m²
- Contrast ratio (typical)
- 400:1
- Picture enhancement
-
- Digital Crystal Clear
- Contrast Plus
- Progressive scan
- 2D Combfilter
- 3/2 - 2/2 motion pull down
- Color Transient Improvement
- Color Temperature Adjustment
- Digital Noise Reduction
- Dynamic Contrast
- Jagged Line Suppression
- LTI
- Luminance Transient Improver
- Motion adaptive de-interlacing
- Sharpness Adjustment
-
- Display screen type
- LCD WXGA Active Matrix TFT
- Response time (typical)
- 25 ms
- Viewing angle (horizontal)
- 176 degree
- Viewing angle (vertical)
- 176 degree
- Screen enhancement
- Anti-Reflection coated screen
-
Supported Display Resolution
- Computer formats
-
- 640 x 480, 60, 72, 75, 85Hz
- 800 x 600, 56, 60, 72, 75,85Hz
- 1024 x 768, 60Hz
- 1280 x 768, 60Hz
-
-
Tuner/Reception/Transmission
- Aerial Input
- 75 ohm coaxial (IEC75)
- Tuner bands
-
- Hyperband
- S-Channel
- UHF
- VHF
- FM
-
- TV system
-
- NTSC
- PAL
- PAL B/G
- PAL D/K
- PAL I
- SECAM
- SECAM B/G
- SECAM D/K
- SECAM L/L'
-
- Tuner Display
- PLL
-
Convenience
- Ease of Installation
-
- Fine Tuning
- PLL Digital Tuning
- Program Name
-
- Ease of Use
-
- FM Radio
- Menu Control
- On Screen Display
- Program List
- Smart Picture
- Smart Sound
-
- Clock
- Sleep Timer
- Clock Enhancements
- Synchro Time via PDC/TXT
- Screen Format Adjustments
-
- Full screen
- Subtitle and Heading Shift
- Superwide
- Widescreen
- Zoom 14:9
- Zoom 16:9
-
- Remote Control
- TV
- Remote control type
- RC2887
- VESA Mount
- 100 x 100 mm
- Remote control
- Zappa
-
Sound
- Output power (RMS)
- 2 x 5W
- Sound System
-
- Mono
- Stereo
- Virtual Dolby Surround
-
- Music Power
- 20 W
-
Connectivity
- AV 1
-
- CVBS in
- CVI
-
- Connectivity Enhancements
-
- RJ45 connector
- RJ12 connector
-
- AV 2
-
- CVBS
- S-Video Y/C
-
- AV 3
-
- CVBS in
- S-Video Y/C
-
- AV 4
- DVI-D
- AV 5
-
- Audio L/R in
- DB15
-
- Other connections
-
- Antenna IEC75
- Component Video (YPbPr) input
- Composite video (CVBS) input
- DVI-D
- FM Antenna
- PC Audio in
- D-Sub in (PC)
-
-
Power
- Mains power
- AC 90V - 240V 50/60 Hz
-
Accessories
- Included accessories
-
- Power cord
- RF antenna cable
- User Manual
-
-
Dimensions
- Product weight
- 11.2 kg
