Article Published Date : 2016-12-29
Your TV is equipped with several types of connections. The type of connection you should use to connect a certain device depends on which features of the particular device you want to use.
NOTE: for the connection of a PC refer to the FAQ on this subject.

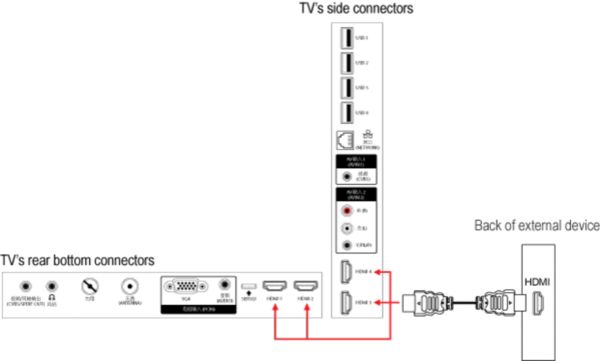

The most complete connection available on your TV is the HDMI connection. This connection accepts high definition (HD) signals from external devices, such as a digital Set Top Box, a DVD-player or a game console such as the PS3.
NOTE: The HDMI connection only supports the LPCM (Linear Pulse Code Modulation) and AC3 (Dolby Digital) audio formats. The DTS (Digital Theater Systems) audio format is not supported via HDMI.

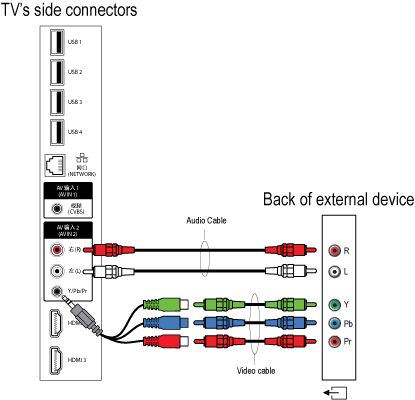

If you want to connect more than one of this kind of external devices, the YPbPr (also called component or YUV) connection is a good choice. Use the component video adaptor cable (supplied) and audio cable (not supplied) to connect your external device to the TV.

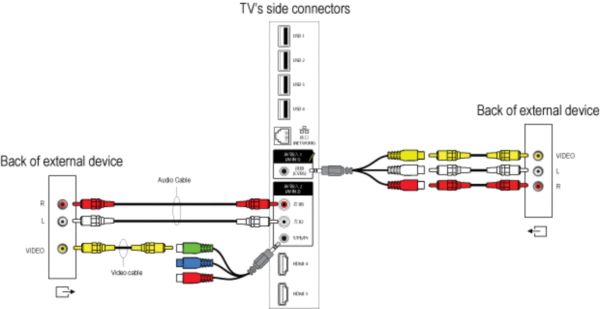

The next best option is the CVBS connection, which enable you to connect devices that are not equipped with a HDMI or YPbPr connection, such as a video camera or photo camera. Use the supplied CVBS and audio adapter cable to connect your external device to the ‘AV IN 1/Video’ connector on your TV. If you want to connect more than one CVBS device to the TV, you may use the ‘AV IN 2/YPbPr’ connection.
After connecting several devices, press the [Source] button on the remote control. Use the cursor [Up] or [Down] to select the TV connection you have used to connect your devices and press the [OK] button in order to watch their programme.
Alternatively, you may add the new device(s) to the home menu and select the device via the home menu. If a device is no longer connected to the TV, you can remove it from the home menu.
If the source is HDMI, the TV will automatically switch to the source input.
Press the [Home] button on the remote control to access the home menu.
Use the [Cursor buttons] to select [Add new device] and press the [OK] button.
A message appears, prompting you to add a new device.
Select [Start] and press the [OK] button.
Use the cursor [Up] or [Down] to select a device and press the [OK] button.
Use the cursor [Up] or [Down] to select the TV connector you have used to connect the device and press the [OK] button.
NOTE: If a particular connector has already been assigned to another device, it will not show up in the list of connectors.
When the guide is completed, press the [OK] button.
A new device icon is added to the home menu.
Repeat step 2 and 7 if you wish to add more devices.
Press the [Back] button to exit the menu.
NOTE: You will not be able to change the TV connector of a previously added device. If you wish to change the TV connector of a previously added device, you will have to delete this device and re-add it with the desired connector.
Your TV DOES NOT have an analogue audio out (red and white) cinch connection. In order to connect the 'CVBS/SPDIF OUT' (CVBS/SPDIF OUT) from the TV to an analogue stereo system, you will need a Digital-to-analog converter (DAC or D-to-A). Make sure that the convertor supports the conversion of both LPCM (Linear Pulse Code Modulation) and AC3 (Dolby Digital) audio format. If you are unsure whether or not a particular converter is suitable, ask your retailer.
NOTE: This TV does not support the DTS (Digital Theater Systems) audio format. Therefore, the DTS audio signal will not pass through the ‘HDMI 1’ (HDMI Audio Return Channel) or the 'CVBS/SPDIF OUT' (CVBS/SPDIF OUT) connection.
Connect a USB memory device to the side USB connector.
